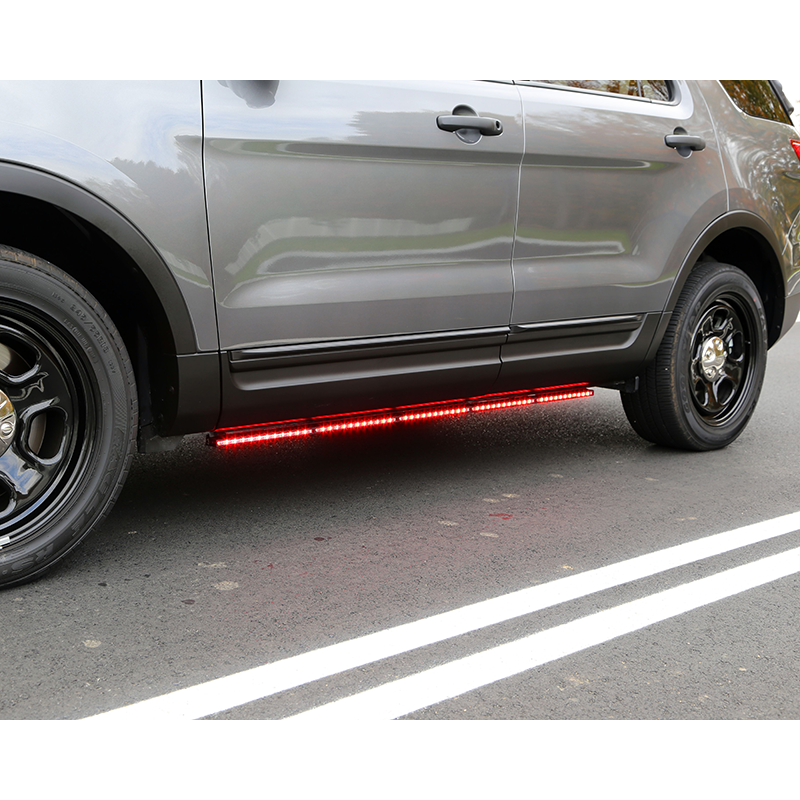

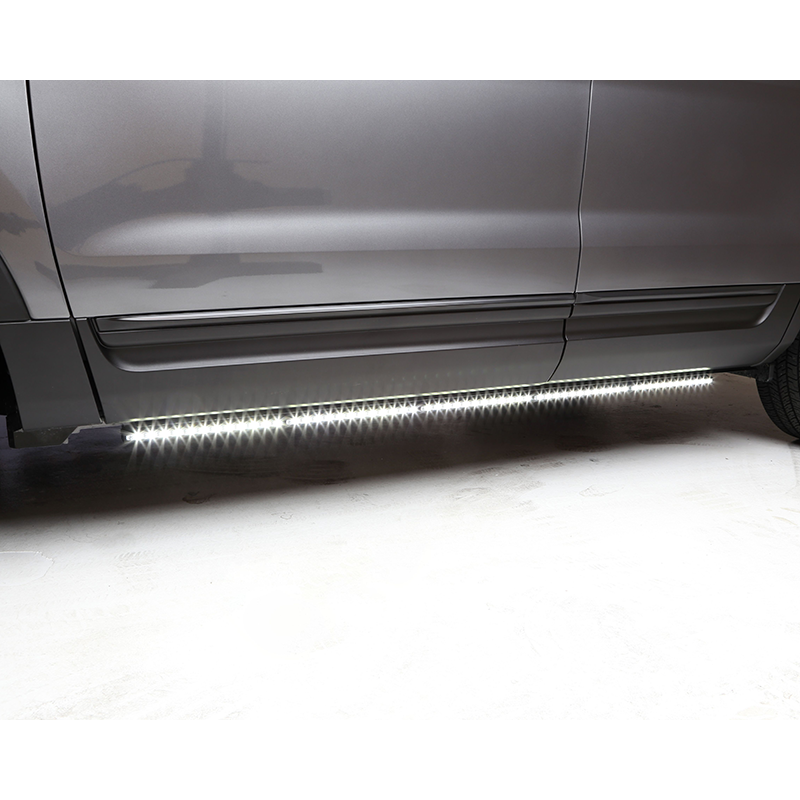

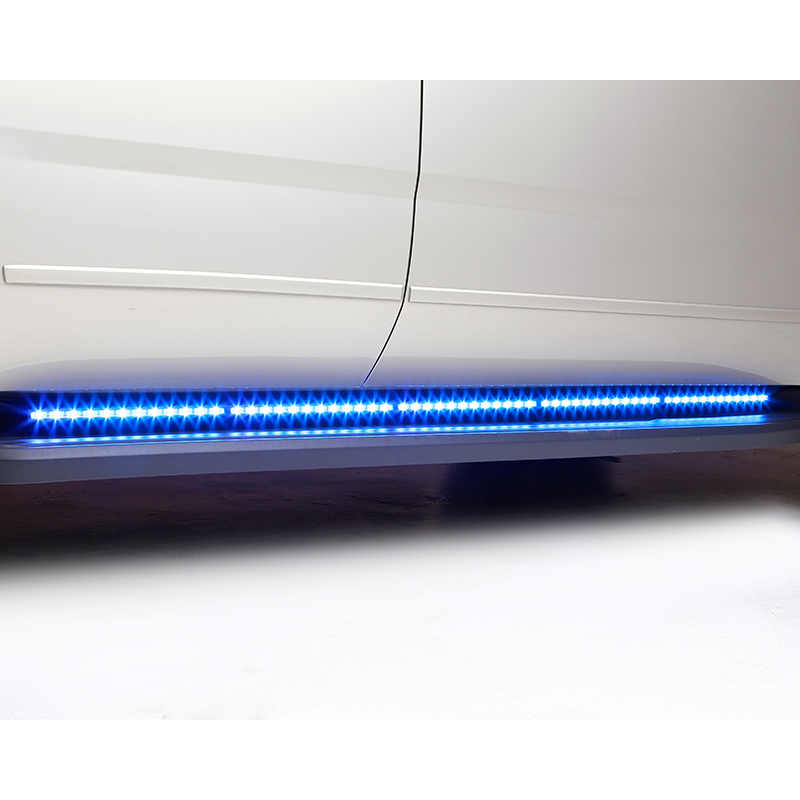

Sleek vehicle specific mounting brackets conform to vehicle rocker panels and the universal mounting bracket kit will mount Tracer to a variety of applications. The durable clamshell design allows for easy reconfiguration and serviceability.

Tracer is now enhanced with Traffic Advisor™ capabilities in 4-6 lamp versions and an all new external control module for ease of installation.

Specifications

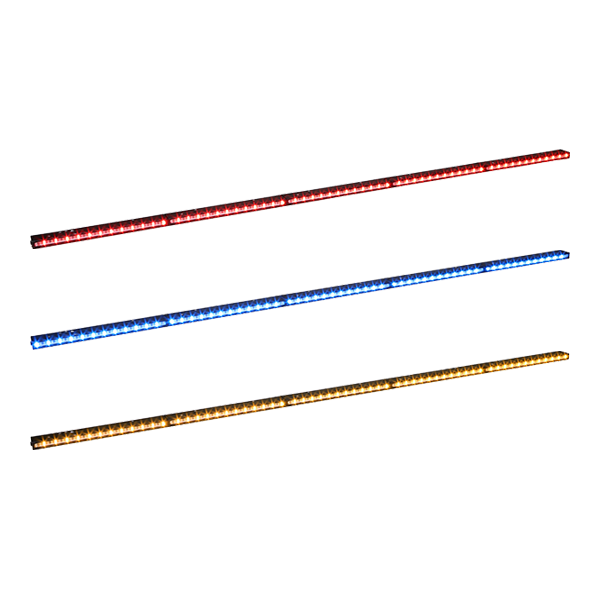

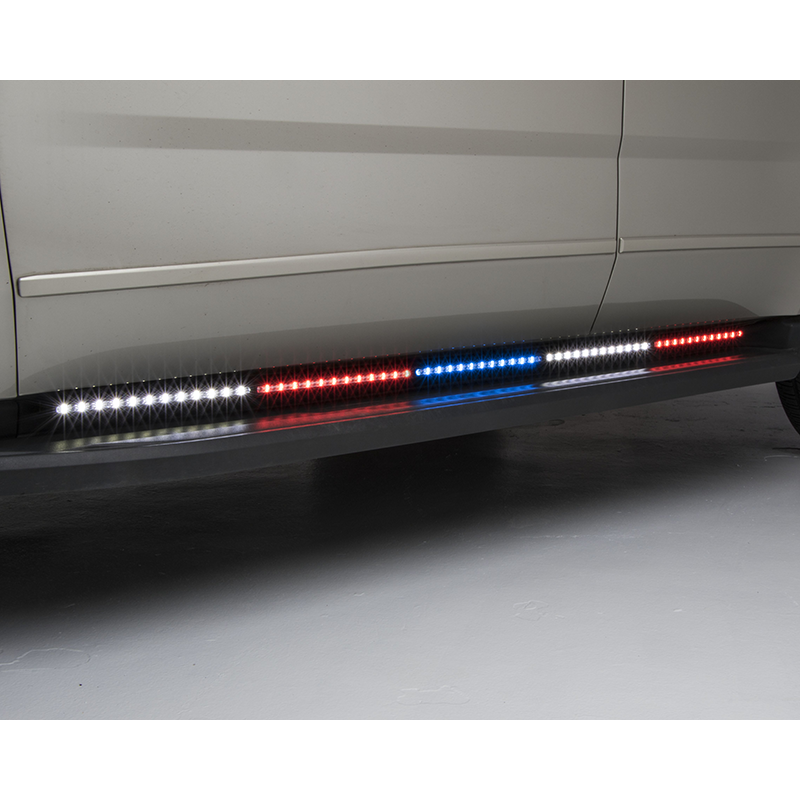

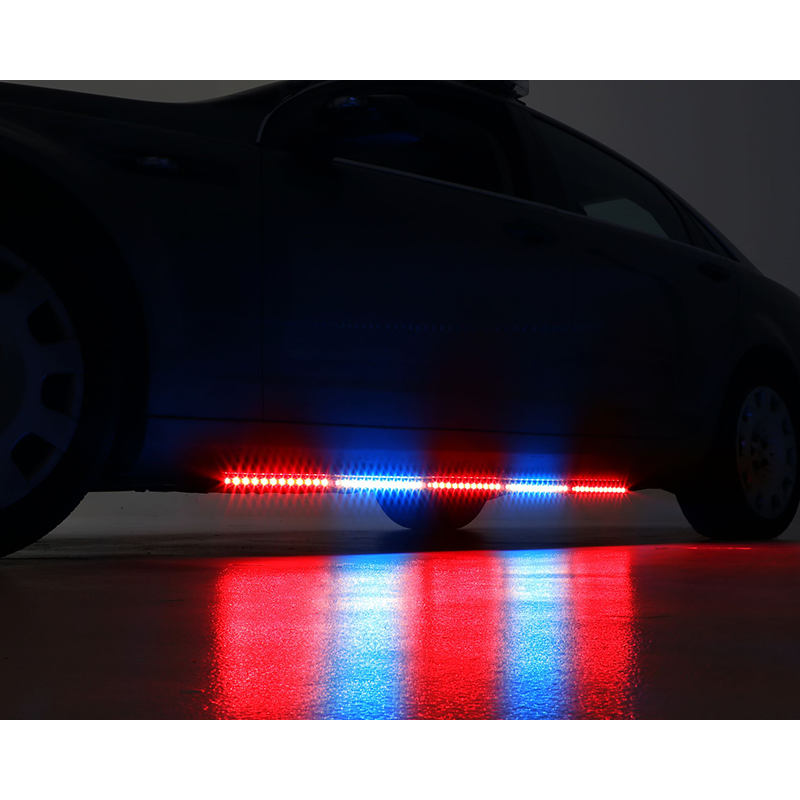

• Available in SOLO™ (single color), DUO™ (two color interleaved), or TRIO™ (three color interleaved) modules
• Lightheads are daisy-chained together in lengths from 1 to 6 modules using the provided extrusion
• 30 Scan-Lock™ flash patterns
• NEW Traffic Advisor included in 4-6 lamp versions
• DUO and TRIO models feature steady override, such as White steady-burn
• DUO and TRIO models can be synced to other Whelen sync products
• Cruise light control includes seven adjustable intensity levels
• Custom light configuration choices are achieved via the mode control wire
• Hard-coated lenses resist environmental damage from sand, sun, salt, and road chemicals
• Easily serviceable clamshell design
• Mounts easily via slide bolt with vehicle specific brackets, universal “L” brackets, or under lightbar brackets
• Includes 15’ cable
• NEW Encapsulated, water resistant control module for exterior or interior installation features two additional inputs for Traffic Advisor functions
• SAE Class 1 Certified
• IP67 rated for dust and water resistance
• 12 VDC
• 0.5 amps peak per module
• Size, single module: .75” (19mm) H x 1.75” (44.45mm) D x 12.5” (317.5mm) L
• Five year warranty
